Industrial Gate Valves Manufacturers Exporters in India
What is a Gate Valves?
What are the Types of Gate Valves?
Gate Valves with Product Characteristics and Size Range :-
| Product | Product Material | Product Characteristics | Product Size Range |
|---|---|---|---|
|

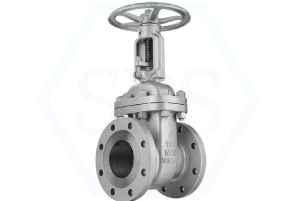

API Gate Valves |
-------------- |
Gate Valve Class 300 NPS 26, Rising Stem, Flexible or Solid Wedge Bolted Bonnet, Welded Seat Ring. |
2 - 48″NB |
|
Bellow Seal Gate Valves |
WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, offered also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Several trim materials accessible to suit provision conditions. |
Face to Face Dimension: Manufacturer Standard | Construction: Standard & Sealing Type High Pressure Ratings.
|
3 - 42"NB |
|

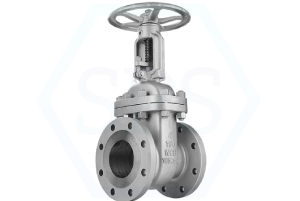

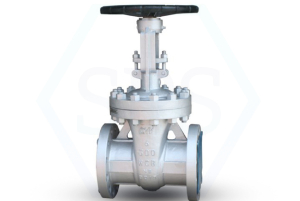

Cast Steel Gate Valves |
WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, offered also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Several trim materials accessible to suit provision conditions. |
Flexible or Split Wedge Design Back-seating, Solid, Renewable Seat Ring Full Port or Reduced Bore Optional Upset Forged T-head Stem Design. |
2 - 48″NB |
|

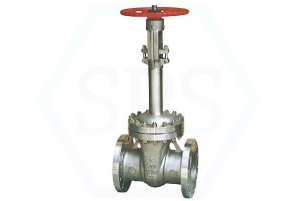

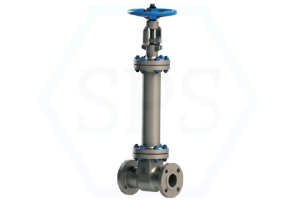

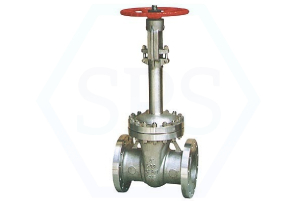

Cryogenic Gate Valves |
WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, offered also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Several trim materials accessible to suit provision conditions. |
Double Bellow & Sealing, Convenient Maintenance, Position Indicator Flanged Dimension: ANSI/ASME B16.5, JB79, S.W Ends: ANSI B16.11, Screwed Ens: ASME B1.20.1
Face to Face Dimension: ANSI/ASME B16.10, GB/T12221 Inspect & Tested.
|
3/8″ to 2″NB |
|

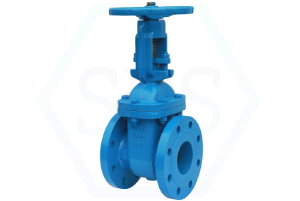

DIN Gate Valves |
Metal Seat (Brass, Bronze or Stainless-steel Trim). |
Full bore Ensured Solid Wedge Disc Suitable medium: water, oil, gas. |
DN40- DN600 |
|

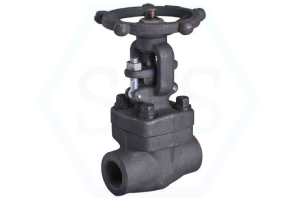

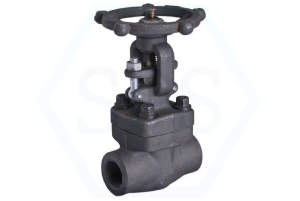

Forged Steel Gate Valves |
A105, F304, F316 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions. |
Constructions: OS & Y Construction, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet Back-seating, Renewable Seat Ring Full Port / Conventional Port Optional Upset Forged T-head Stem Design High Pressure Rating. |
1/4″ to 4″ NB |
|

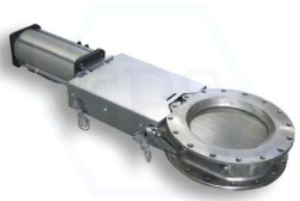

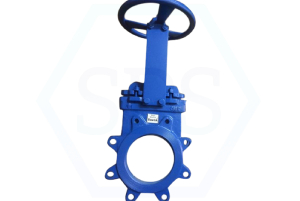

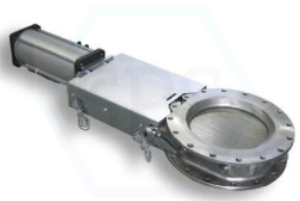

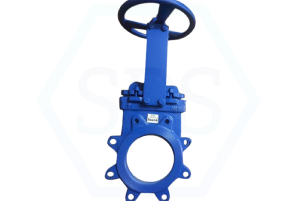

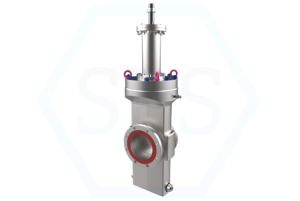

Knife Gate Valves |
Through Going Gate Valve, EN Wafer Knife Gate Valve, Wafer Knife Gate Valve, Mono-Block Knife Gate Valve, 3 Fully Lugged Knife Gate Valve. |
Knife Gate Valve are with advantages of compact structure, reasonable design, material saving, reliable sealing, convenient operation, small volume, full passage flow, small flow resistance, small weight, easy installation and maintenance. |
2 - 50"NB |
|

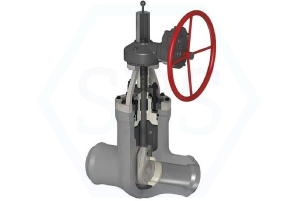

Pressure Seal Gate Valves |
WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, offered also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Several trim materials accessible to suit provision conditions. |
Solid, Flexible or Split Wedge Design Pressure Sealed Back-seating, Renewable Seat Ring Full Port or Reduced Bore Optional Upset Forged T-head Stem Design. |
1/2 - 20″ NB |
|

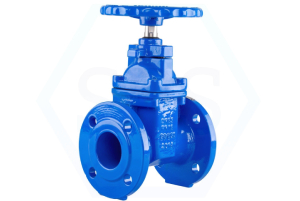

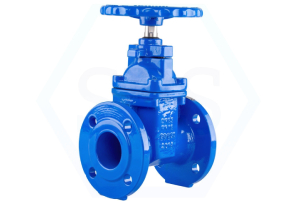

Resilient Gate Valves |
Metal Seat (Brass, Bronze or Stainless steel Trim) |
Full bore Ensured Solid Wedge Disc Metal Seat (Brass, Bronze or Stainless steel Trim) Suitable medium: Water, oil, gas. |
DN40 - DN600 |
|
Slab Gate Valves |
Body / bonnet material: WCB / 316 / 304
Seat material: 13% Cr plus PTFE / 316 plus PTFE / A105 plus ENP plus PTFE
Disc material: 13% Cr / 316 / A105 plus ENP
Stem material: 13% Cr / 316 / 304. |
150LBS -2500LBS class, Quality Tested. |
1 - 40" |
|
Sliding Gate Valves |
WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, offered also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Several trim materials accessible to suit provision conditions. |
Standard & Sealing Type Construction Flanged Dimension: ANSI/ASME B16.5, JB79,
Face to Face Dimension: Manufacturer Standard Inspect & tested. |
3 - 42″NB |
|

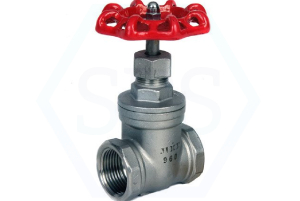

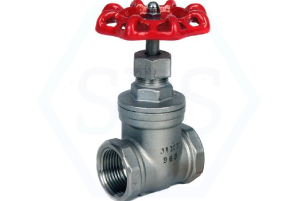

Threaded Gate Valves |
SS 316 (ASTM A351 CF8M), SS 304 (ASTM A351 CF8), WCB. |
Investment casting body Screwed Bonnet wedge disc Integral Seat. |
1/2″, 3/4″, 1″, 11/2″, 11/4″, 2″ |
About SS Gate Valves Exporter all over the Globe: -
Gate Valves are used once a straight-line flow of fluid and minimum restriction is desired. Gate valves are therefore named as a results of the half that either stops or permits flow through the valve acts somewhat similar to the gap or closing of a gate and is termed, suitably, the gate. We are Exporter and Manufacturers of Gate Valves in India. The gate is usually wedge formed. once the valve is wide open, the gate is completely demanded into the valve, departure a gap for flow through the valve an equivalent size because the pipe at intervals that the valve is place in. Therefore, there is little or no pressure drop or flow restriction through the valve. Gate valves are not applicable for strangle functions since the management of flow would be robust as a results of valve style and since the flow of fluid slapping against a partially open gate will cause thorough damage to the valve. Except as specifically licensed, gate valves mustn't be used for throttling. Please forward your inquiries on these products to us. Contact Us +919152160158 or email to infobmi32@gmail.com for Gate Valves price list.
Gate Valves Chemical Composition :-
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
|
304 |
0.08 max |
2.0 max |
0.75 max |
0.045 |
0.030 |
18.0-20.0 |
-- |
8.0-10.5 |
0.10 |
SS Gate Valves Mechanical Composition :-
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
|
304 |
515 |
205 |
40 |
92 |
201 |
Gate Valves Equivalent Grades :-
| AISI Grade Equivalent | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS designation | EN/DIN Symbolical Equivalent |
|---|---|---|---|---|---|
|
AISI 304 |
SUS 304 |
SS 304 |
EN 1.4301 |
UNS S30400 |
X4CrNi18-10 |
Stainless Steel 304 Gate Valves Specification Chart :-
| Specification Chart | |
|---|---|
|
Size |
40 MM TO 300 MM |
|
Temperature |
-29°C — +180°C |
|
Operation Temperature |
-10°C~150°C |
|
Appropriate Medium |
Water, Sewage, Seawater, Gas, Food, Oils etc. |
|
Available Connection |
BSP/ BSPT/ NPT/ Flanged/ Welded |
|
Nominal Pressure |
P10 / PN16 |
|
Applications |
Water, Oil, Gas. |
Stainless Steel Gate Valves Applications and Uses:-
- Light Poles
- Elevators
- Lifting applications (wires, etc.)
- Frame Applications
- Construction
- Buildings
- Furniture
- Pipelines
- Industries and many other.
Gate Valves Supplier in India – Bhansali Metalloys Inc
We Bhansali Metalloys Inc are a leading Manufacturer Supplier of High Quality Gate Valves in India. Bhansali Metalloys Inc is manufacturer supplier of Stainless Steel Gate Valves in most of the major Indian cities in more than 20 states. We are leading supplier of SS Gate Valves in Mumbai, Hyderabad, Ahmadabad, Ludhiana, Delhi, Rajkot, Agra, Chennai, Salem, Bangalore and many other cities. Contact Us +919152160158 or email to infobmi32@gmail.com for Gate Valves price list. The complete list of cities we supply our Gate Valves to be mentioned in the below table:-
